Free design services for circuit board customers

Description

Ordering samples for customization

Customization process: Contact customer service, provide requirements, get a quotation for you, pay the deposit, arrange production, make the payment for cooperation, conduct inspection and shipment, provide after-sales service.

Customize and design the circuit board according to your requirements

The factory for the circuit boards is currently being managed by my father, my eldest brother and my sister-in-law.

This is where our dreams began.

Process

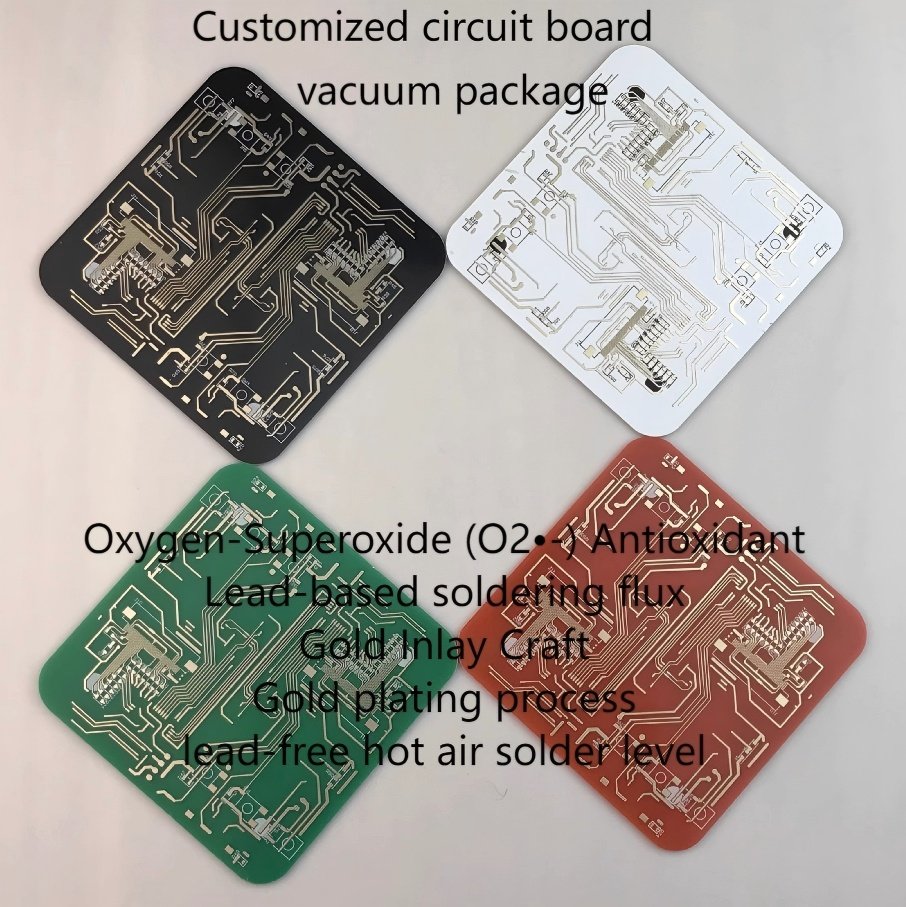

Oxygen-Superoxide (O2•-) Antioxidant

Lead-based soldering flux

Gold Inlay Craft

Gold plating process

lead-free hot air solder level

Packaging：vacuum package

Application:Our products are widely used in communication equipment, industrial control, consumer electronics, medical instruments, aerospace, LED lighting, automotive electronics…

Technical Support:① Software support

Data Conversion Software: Protel 99 SE, P-CAD, Protel DXP, PADS Data Conversion Software: Protel 99 SE, P-CAD, Protel DXP, PADS ② Common Data Formats Supported

Gerber: Gerber RS-274×2.5 English leading

Drilling Format: 3.3 Metric trailing

Compression File Format: .rar, .zip

To meet the customer’s delivery schedule quickly and promptly, please provide us with the complete Gerber RS-274X data.

Other Services:The PCB layout drawing (printing file) can be copied. The BOM table (material list) can be copied. The SCH (circuit schematic) can be derived from it.
